Ramp Specifier Guide

Choosing the correct ramp is important. Like finding the right size shoe or the correct glasses, it is essential that the best product is chosen, to ensure the user’s needs are met. The 5 simple stages outlined on these pages should be enough to solve most situations, but please don’t hesitate to give our experienced team a call if you have any queries.

What type?

Steps/Stairs

Steps/Stairs
  • Aerolight-Classic
  • Aerolight-Xtra
  • Ultralight range
  • Welcome
  • Swift Ramp System

Wood/Level Access Door Threshold

Wood/Level Access Door Threshold
  • Aerolight range
  • Ultralight range
  • Doorline range
  • Permaramp-Original
  • Welcome

PVC Door Threshold

PVC Door Threshold
  • Ultralight-Combi / Folding
  • Doorline range
  • Permaramp-Adjust
  • Welcome
  • Swift Ramp System

Vehicle Access

Vehicle Access
  • Aerolight-Lifestyle
  • Aerolight-Broadfold
  • Ultralight range

How steep?

1:6 (10˚)*Acceptable in some cases for short threshold ramps
1:8 (8˚)*A useful balance between gradient and space suitable for portable ramps in some assisted applications and events, etc.
1:12 (5˚)Often required by social services/local authorities. Minimum required by Building Regs Doc M for installed ramps.
1:15 (4˚)Sometimes required by social services/local authorities for public or independent access.

* Wheelchairs must descend backwards. Assess safety/risk.

How long?

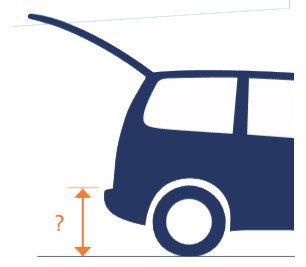

a. Measure the step height / level difference. (Total height of steps or height to resting point on vehicle)

b. Use the Ramp Length Guide to decide which length you need.

Ramp Length Guide

Step height /
level difference (up to)
Length at 1:6Length at 1:8Length at 1:12
10cm (4”)60cm (2’)80cm (2’ 8”)120cm (4’)
15cm (6”)90cm (3’)120cm (4’)180cm (6’)
20cm (8”)120cm (4’)160cm (5’ 4”)240cm (8’)
25cm ( 10”)150cm (5’)200cm (6’ 8”)300cm (10’)
30cm (1’)180cm (6’)240cm (8’)360cm (12’)
45cm (1’ 6”)270cm (9’)360cm (12’)540cm (18’)
60cm (2’)360cm (12’)480cm (16’)720cm (24’)

Note:  Ramp lengths over 300cm (9’10”) can be achieved using high-rise ramp kits, Welcome system and Swift ramp system.

Select and order

Select the product you need, and call, email or fax us to confirm your choice and place your order.
